Drainage Cell 50mm

Drainage Cell 50mm

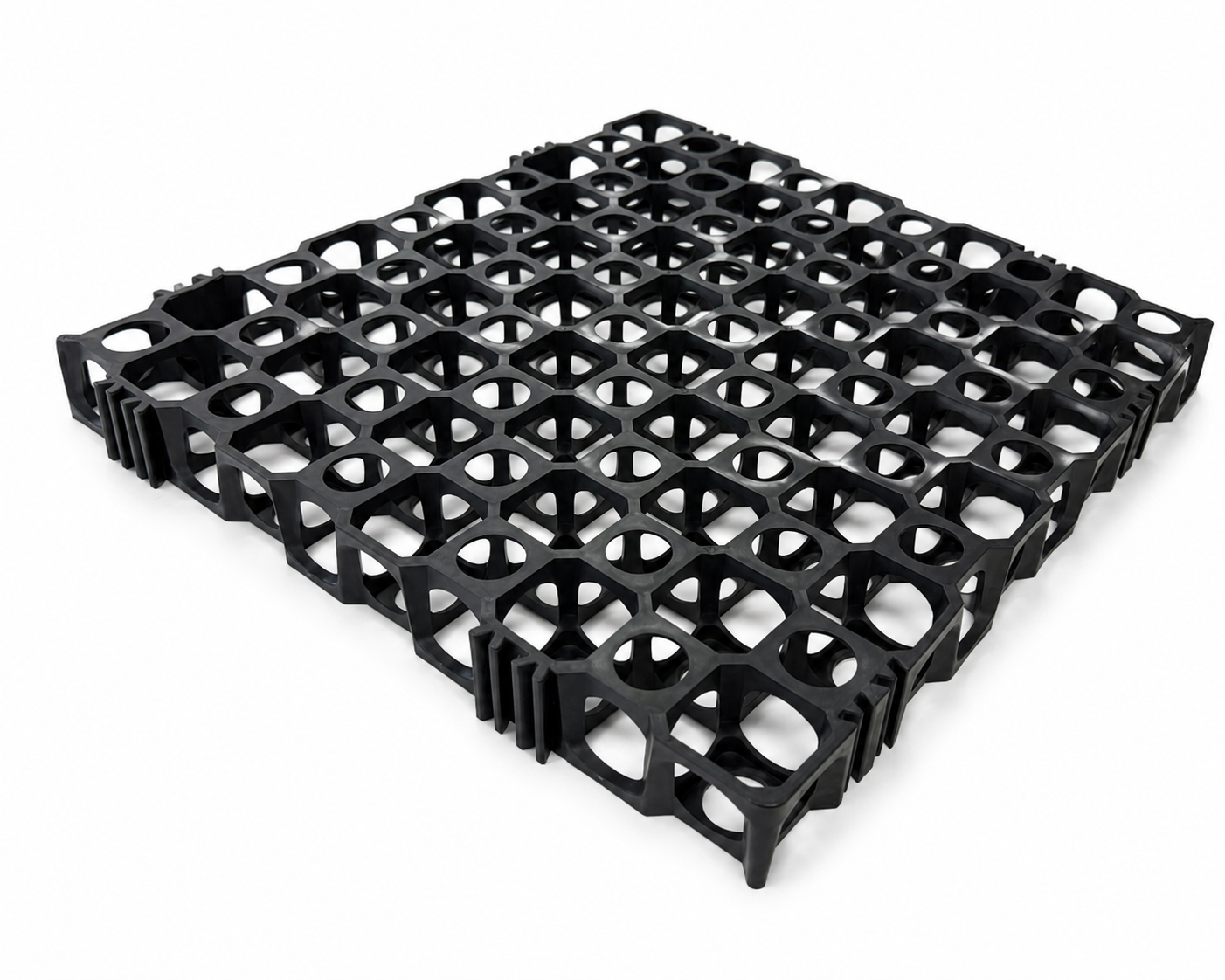

Drainage Cell, when wrapped in geotextile fabric, provides a permanent, structural and non-clogging void between the building structure and the soil profile that will not collapse or distort.

The void enables a direct flow of water to designated outlets, resulting in superior drainage efficiency compared to conventional gravel filled systems. Suited to a wide variety of uses, from providing relief to saturated sports fields through to sub surface drainage for driveways, retaining walls and basement waterproofing.

Specifications and Features Dimensions (per piece): 500mm (L) x 500mm (W) x 50mm (H) Weight: 4.8 kg/m² Material: 100% Polypropylene Surface Void: 70% Internal Void Area: >95% Surface Void Area: >67% Compressive Strength: 80 tonnes Flow Rate: 25 cm³/s/cm Service Temperature: -30°C to +120°C Chemical Resistance: Unaffected by moulds, algae, soil borne chemicals and bacteria Note: 1sqm is supplied as 4 x 500mm x 500mm pieces that interlock.

Typical Applications

• Retaining Walls
• Green Roofs
• Planter Boxes
• Basement Waterproofing
• Podium Slabs
• Sports Fields
• Driveways
• Around Foundations

Installation

• Place the Drainage Cell over the surface of your geotextile.
• Interlock the cells as you install them one by one.
• Cut the drainage cells to size or shape if required
• Lay more geotextile fabric over the top of the cells, allowing for an overlap on each side, and extra to cushion the edges of the cell.
• If installing vertically, ensure the geo-textile membrane runs alongside it.
• Lay a 50–100mm layer of sand as a filtering layer over the geotextile, then add your soil layer.


Downloads

• Specifications
